Gear’s BDF method.

The OdeGearsBDF class solves an initial-value problem for stiff ordinary differential equations using the Gear’s BDF method.

 In this example the OdeGearsBDF class is used to solve the van der Pol equation:

            y''-mu*(1-y^2)*y'+y=0
If y0=y and y1=y' then:
            y0' = y1,                                  y0(0)= 2
            y1' = mu * (1 - y0 ^2) * y1 - y0           y1(0)=0

C# Code

using System;
using System.Windows.Forms;

using DotNumerics.ODE;

namespace DotNumericsDemo.DifferentialEquations
{
    public partial class GearsBDF : Form
    {
        private OdeGearsBDF odeBDF = new OdeGearsBDF();
        private double _mu = 500d;

        private void Solve()
        {
            OdeFunction fun = new OdeFunction(ODEs);
            double[] y0 = new double[2];
            y0[0] = 2;
            y0[1] = 0;
            this.odeBDF.InitializeODEs(fun, 2, 0, y0);
            double[] y;
            double t;
            double[,] sol = new double[3001, 2];
            for (int i = 0; i <= 3000; i++)
            {
                t = i;
                y = odeBDF.Solve(t);
                sol[i, 0] = t;
                sol[i, 1] = y[0];
            }

        }

        //The van der Pol equation:
        //            y''-mu*(1-y^2)*y'+y=0
        //If y0=y and y1=y' then:
        //            y0' = y1,                               y0(0)= 2
        //            y1' = mu * (1 - y0 ^2) * y1 - y0        y1(0)=0
        double[] yprime = new double[2];
        private double[] ODEs(double t, double[] y)
        {
            yprime[0] = y[1];
            yprime[1] = this._mu * (1 - y[0] * y[0]) * y[1] - y[0];
            return this.yprime;
        }

    }
}

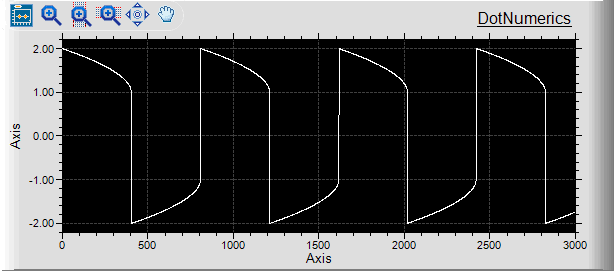

Solution
